Fluke 190-504-III ScopeMeter Repair

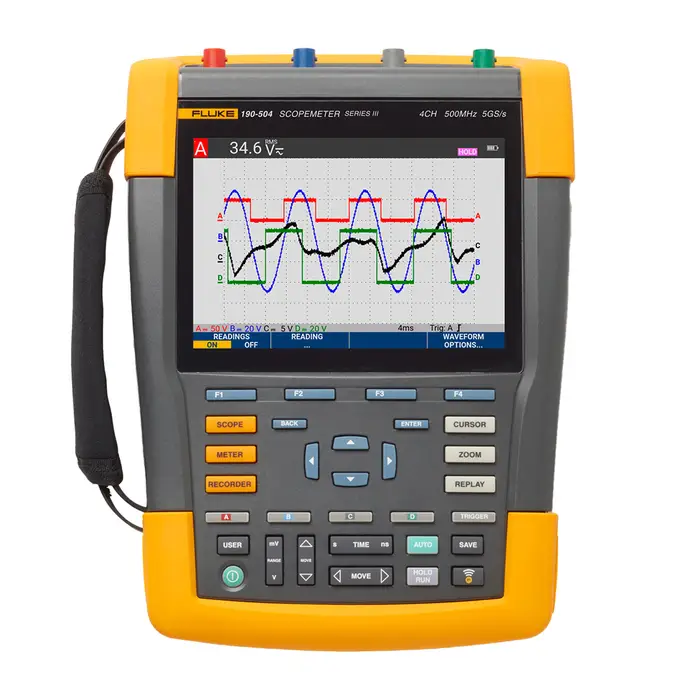

The Fluke 190-504-III is a rugged handheld ScopeMeter (190 Series III) — a 500 MHz four-channel handheld oscilloscope (Series III), the top of the 190 line. With fully isolated inputs for safe floating measurements, its faults concentrate in the isolated input front-ends, the display, and the battery/power section.

FlukeMeterRepair.com repairs and calibrates the Fluke 190-504-III for industrial electricians, automation technicians, and field-service engineers.

Common Fluke 190-504-III problems we fix

  • Trigger-circuit faults — unstable or wrong triggering, corrected.
  • Isolated-input breakdown — damage to the floating input isolation, repaired and recalibrated.
  • Input-channel damage — a dead, noisy, or inaccurate channel after an over-range event, repaired.
  • Display failure — blank, dim, or cracked display, repaired.
  • Won’t power on or hold a charge — battery and power faults, serviced.

FAQs

A channel on my 190-504-III is off — fixable? Yes. Isolated-input and measurement faults are repairable, then every channel is recalibrated so measurements are accurate, with a NIST-traceable certificate.

Are all channels recalibrated? Yes — each of the four channels is checked against our standards.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or request service.

Brand

Fluke Scopemeter Repair

Fluke ScopeMeter products combine the functionality of an oscilloscope, a digital multimeter (DMM), and data recorder into portable handheld devices. They are designed for troubleshooting and diagnosing electrical and electronic systems in industrial, field service, and laboratory environments. Here are some key Fluke ScopeMeter products and their functionalities:
  1. Fluke 120 Series Handheld Oscilloscopes:
    • Functionality: Combines oscilloscope, multimeter, and recorder capabilities in a single portable device.
    • Features: Measures and displays voltage, current, frequency, and waveform characteristics. Can capture and analyze transient events and signal anomalies.
    • Applications: Suitable for field service technicians and maintenance professionals for troubleshooting electrical systems, motors, control circuits, and industrial automation.
  2. Fluke 190 Series II Portable Oscilloscopes:
    • Functionality: High-performance portable oscilloscopes with advanced measurement capabilities.
    • Features: Offers bandwidths up to 500 MHz, fast sampling rates, deep memory, and flexible triggering options. Provides detailed waveform analysis and trend recording.
    • Applications: Used in industrial, automotive, and aerospace applications for diagnosing complex electrical and electronic systems, including control systems and communications networks.
  3. Fluke 123, 124, and 125 Industrial ScopeMeters:
    • Functionality: Robust handheld oscilloscopes designed for rugged industrial environments.
    • Features: Offers dual input channels, up to 40 MHz bandwidth, and real-time sampling rates. Includes DMM capabilities for voltage, current, resistance, and continuity measurements.
    • Applications: Ideal for maintenance technicians and engineers working on machinery, process control systems, and power distribution systems where portability and durability are crucial.
  4. Fluke 190-204/S Portable ScopeMeter:
    • Functionality: Four-channel portable oscilloscope with DMM capabilities.
    • Features: Offers bandwidths up to 200 MHz, deep memory, and advanced triggering options. Provides simultaneous viewing of multiple signals and real-time data recording.
    • Applications: Used in complex industrial environments for troubleshooting electrical systems, analyzing control signals, and verifying performance of electronic components and circuits.
  5. Fluke ScopeMeter 120B Series:
    • Functionality: Compact and rugged handheld oscilloscopes with DMM functions.
    • Features: Offers bandwidths up to 100 MHz, dual input channels, and fast sampling rates. Includes automatic measurements, waveform recording, and trend plotting.
    • Applications: Suitable for service and maintenance tasks in automotive, HVAC, and process industries where space and portability are critical.
Fluke Scopemeter Repair & Calibration
